Vixen

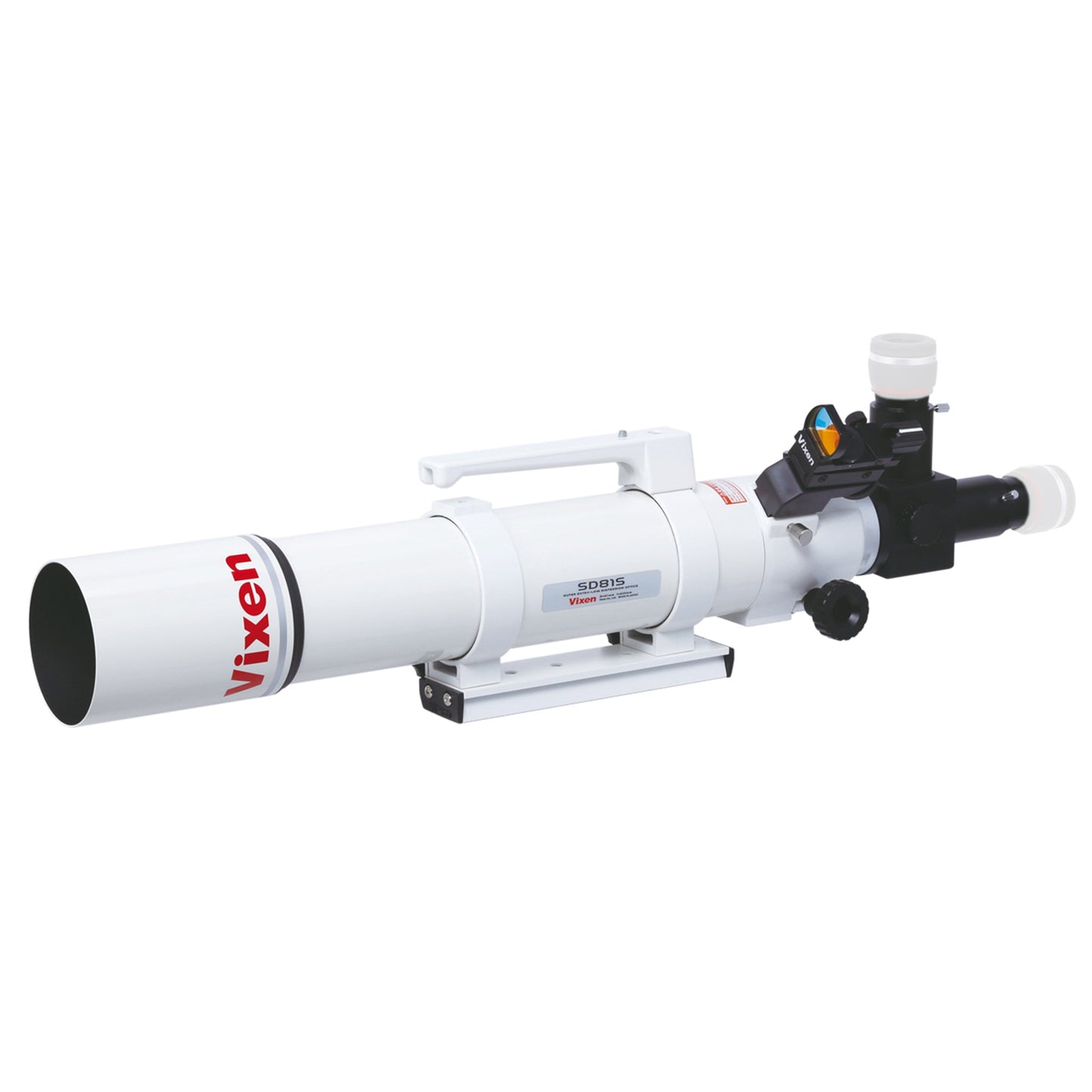

Vixen SD81S FPL-53 ED Refractor Telescope

Vixen SD81S FPL-53 ED Refractor Telescope

SKU: ES26146

Regular price
Price: $1,609.94 USD
Regular price
List Price:
Sale price
Price: $1,609.94 USD
10% off and Free Shipping | Coupon Code: OPTICS (TELESCOPES, SPOTTING SCOPES, NIGHT VISION GOGGLES) | Ends:
View Cart

Out of stock

DISCONTINUED 2023
*Note that this is a discontinued product. This legacy information is for reference only. See our Telescope Collection for current products.

Features

  • High-performance Super FPL-53 ED glass lens
  • Short overall length and low weight
  • Ideal for planetary observation and photography
  • Illumination with a 44mm image circle for full format
  • Pure-color, high-contrast images

Description

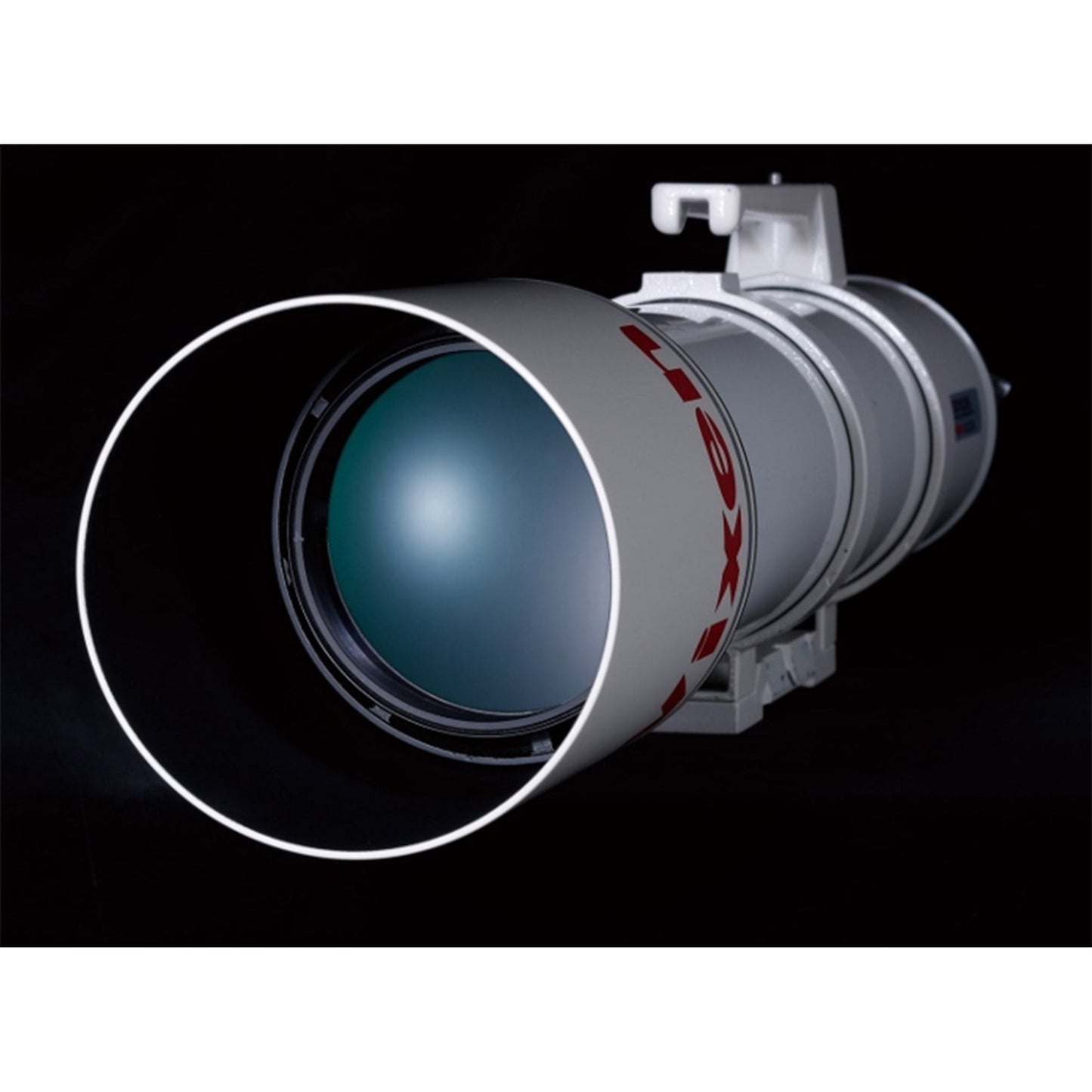

A new 81 mm apochromatic refractor with high-performance Super ED glass (= SD). The FPL53 glass reproduces an extremely clear and sharp image through an extremely high level of elimination of residual color defects. The SD glass is designed in such a way that it brings all the rays of violet, red, blue, yellow and green together very precisely on the same plane.

The special lens material reduces the chromatic aberration about all colors. In combination with the new optional SD Reducer HD Kit or SD Flattener HD, these refractors enable illumination with a 44mm image circle for full format SLR cameras.

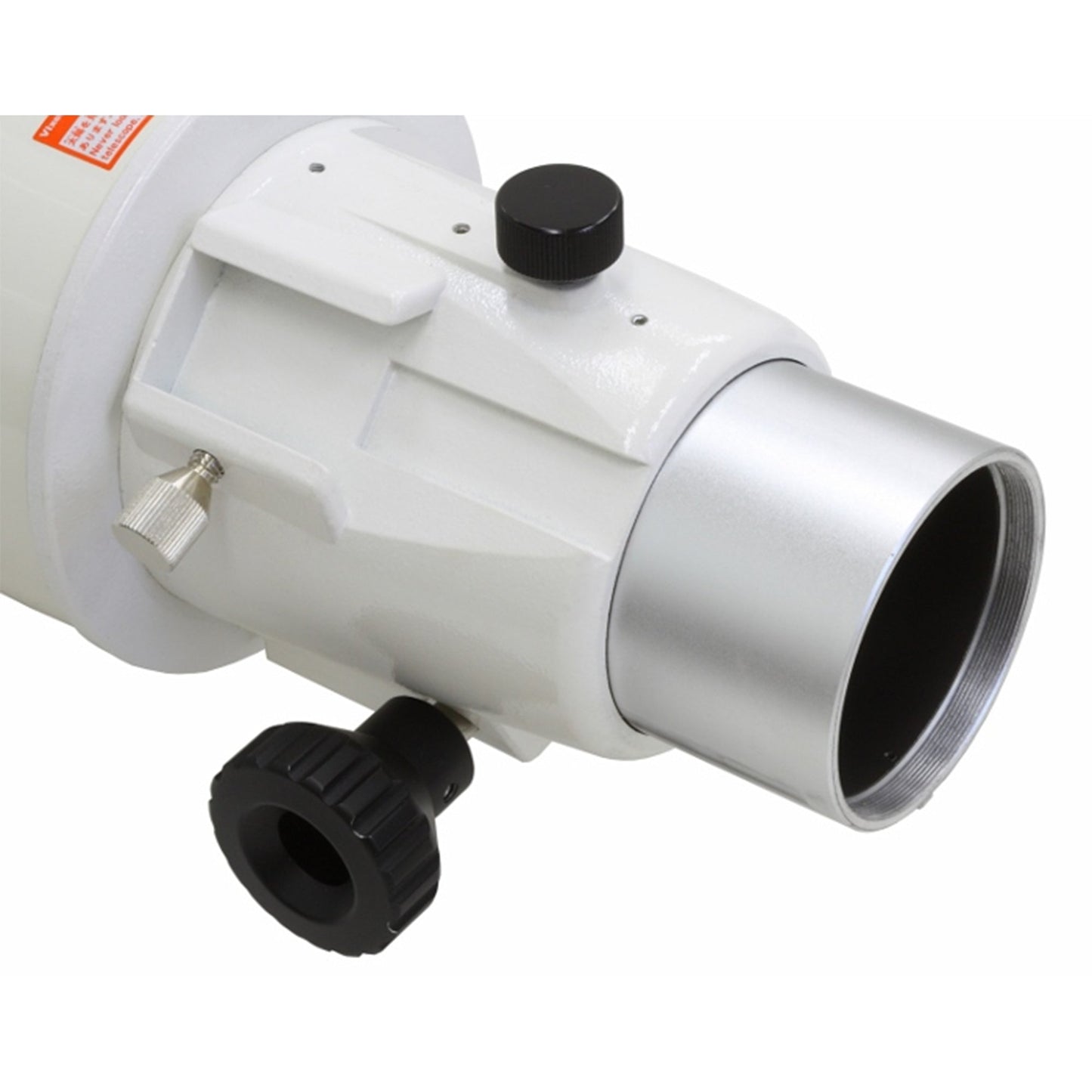

The advantage of these SD refractors is their short length and low weight. The ED81SII, ED103S, ED115S refractors were originally developed for the visual observer or photographer with APS-C cameras. However, the new SD series has also been optimized for the use of full-frame cameras by replacing new inner panels. The large focuser enables heavy cameras to be attached without tilting.

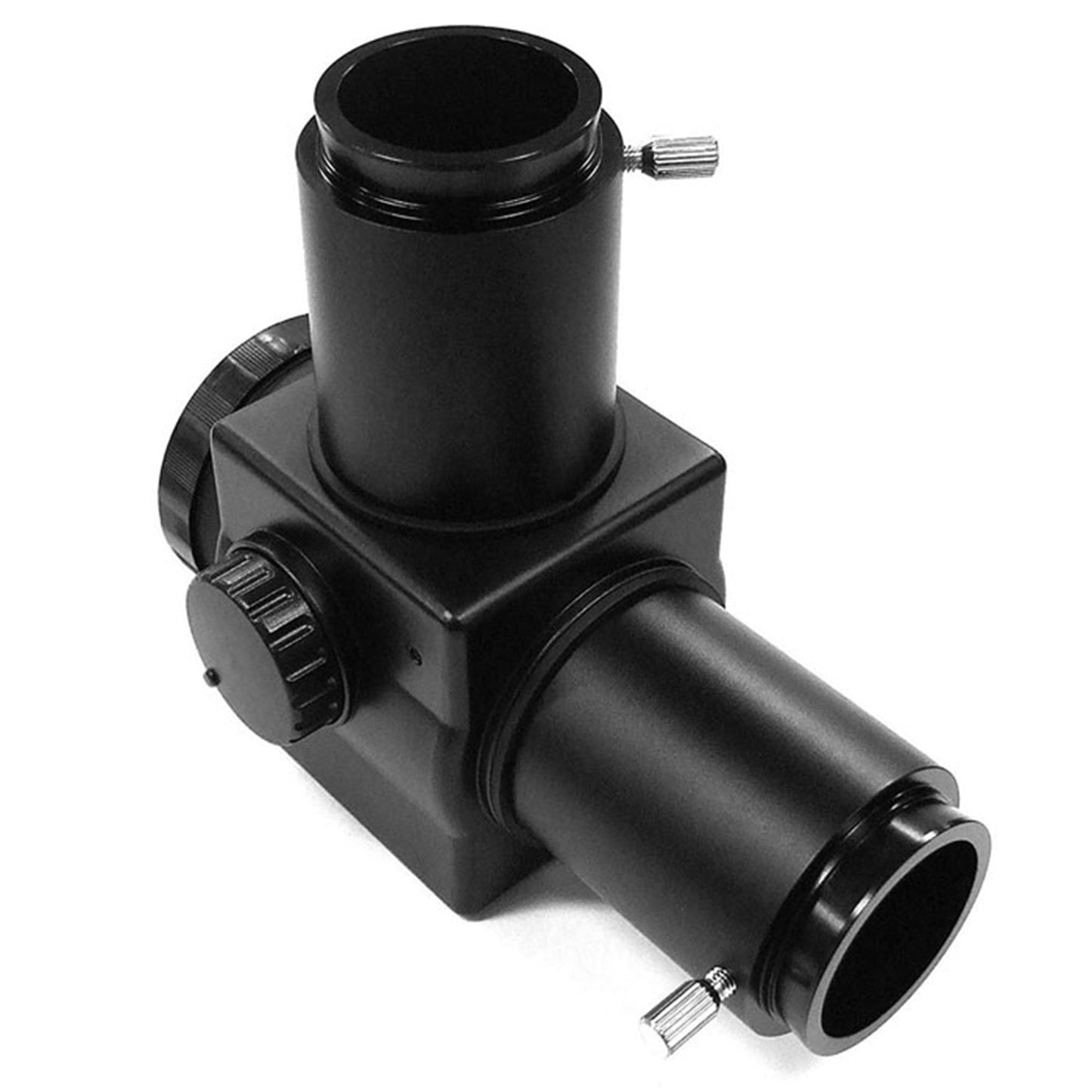

The included folding mirror allows comfortable observation, even in unfavorable observation situations, and also offers a T2 thread for connecting a DSLR camera.

What's Included

  • Refractor SD81S telescope
  • Pipe clamps
  • Flip mirror folding mirror
  • Handle
  • Dovetail rail
  • Red dot finder

Specs

Optical design Apochomatic Refractor
Mirror/Lens diam. 81 mm
ED Glass Yes
Focal length and Aperture ratio 625 mm f/7.7
Angular resolution 1.43 arc seconds
Eyepiece adapter 50.8mm (2 inches) and 31.7mm (1.25 inches)
Visual limiting magnitude 11.3 (approx., mag)
Viewfinder XY Red Dot Finder II
Dimensions and weight 90mm dia x 585mm, 3.6kg

Warranty

Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:

Vixen Electronic Parts: Limited One Year Warranty

Vixen Mechanical Parts: Limited Two Year Warranty

Click Here to read more
